A comparable quotation requires more than a board name or a two-way/four-way description: you need the current, voltage, fuse-link specification, fault level, enclosure protection and included hardware. By the end, you will know what to specify, how to compare Pune prices, and when an aerial fuse board is unsuitable for the installation.
Key takeaways
- Confirm whether you need a service cut-out, fuse board, or terminal enclosure.
- Match fuse rating and fault capacity to the installation’s design requirements.
- Check enclosure material, sealing, UV resistance, and pole-mounting hardware.
- Compare Kasba Peth quotes using a delivered-price checklist, not unit price alone.
What to specify before asking for an aerial fuse board quotation
Resolve the equipment type before requesting a quotation: choose a service cut-out, an overhead-distribution fuse board, or an enclosure containing fuse carriers and terminals. These are not interchangeable.
1. Record the system voltage, number of phases, neutral arrangement, continuous load current, conductor size, number of fuse ways, fuse-link size, required breaking capacity and prospective short-circuit current. State whether the board serves a utility network, commercial premises, industrial installation, upstream transformer or downstream service connections.
2. Ask an aerial fuse board supplier in Kasba Peth for the exact L&T model number or another manufacturer’s part number, rated current in amperes, rated voltage, overall dimensions and applicable standard. If a switch-disconnector is included, request its declared standard, such as IEC 60947-3 or the corresponding Indian adoption.
3. For every fuse-link and carrier, request the exact IEC 60269 designation, utilization category, voltage, current rating, physical size and breaking-capacity value. Also state whether the quotation includes carriers, HRC fuse-links, neutral links, terminals, cable lugs, mounting brackets and weatherproof covers.
A quotation that says only “four-way aerial fuse board” proves neither compatibility nor price comparability. Two four-way boards can differ in carrier current, fuse-link size, enclosure specification and included termination hardware. Ask for the product drawing and technical schedule before comparing the aerial fuse board price in Pune.

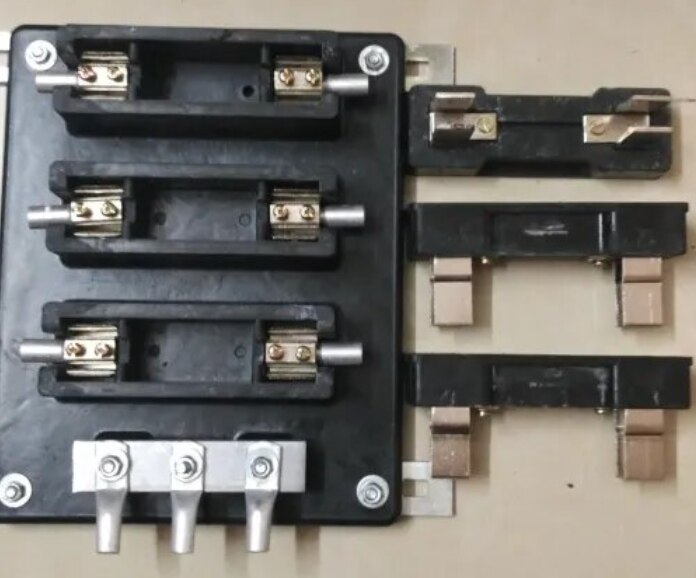

How an aerial fuse board fits onto an overhead pole or structure
A board that does not match the pole hardware, conductor route or fuse access space will not become suitable after delivery. If you plan to buy aerial fuse board in Kasba Peth, check the installation drawing before placing the order.
1. Confirm the mechanical arrangement. The drawing must show pole or support mounting points, the bracket and clamp arrangement, incoming conductor entry, outgoing cable or conductor exits, fuse-carrier orientation, neutral-link position, cable-bending space and access for fuse replacement.
2. Confirm electrical clearances from the manufacturer’s drawing and the installation owner’s rules. Check phase-to-phase, phase-to-neutral and live-to-earth distances; never infer them from the enclosure’s outside dimensions. Ask how the board bonds to the earthing system, where the protective conductor terminates, and whether pole hardware, earth studs, lugs and bonding links are included.
3. Confirm the connection method. Ask whether the enclosure accepts overhead bare conductors, insulated aerial bundled cable, or only cable terminations through glands and lugs. The offer must state cable-lug hole spacing, terminal size, tightening torque and maximum conductor cross-section.
Request a dimensional drawing and terminal schedule with the quotation. These documents expose insufficient bending space, an incompatible lug pattern, a small enclosure, or a neutral link that cannot accept the service conductor before you pay for the wrong board.
How to compare fuse ratings, fault capacity and outdoor construction
Match every fuse-link and carrier to the system voltage, continuous load, utilization category, physical size and breaking capacity. Select the fuse rating from the design load and conductor ampacity, then check discrimination with the upstream transformer fuse or breaker and downstream service protection.
Raising the rating to stop nuisance operation can overheat the cable or exceed its fault duty.
Check these points before comparing an aerial fuse board price pune quotation:
| Check | Compare | Failure if missed |
|---|---|---|
| Fuse-link | IEC 60269 designation, voltage, amperes, size and breaking capacity | The link may not fit, interrupt the fault or coordinate |
| Carrier | Matching physical size, current and voltage rating | A loose or incompatible carrier creates unsafe contact |
| Fault duty | Prospective short-circuit current against the assembly rating | Fault energy can exceed the board’s capability |
| Supply scope | Empty enclosure, or carriers, HRC links, terminals and neutral links | The “lower” price may omit essential parts |
For exposed installation, request enclosure material, insulation details, UV-resistance evidence, operating temperature range, corrosion protection and impact rating. Check the stated IP code against IEC 60529 test documentation; IP protection alone does not prove UV stability, heat resistance or long-term rain performance.
Ask for the complete assembly’s routine-test record and any named utility specification, tender clause or project test certificate. “Approved” proves nothing without a named authority or certificate. Also separate enclosure-only pricing from a complete assembly with mounting hardware, terminals and testing.
When a different enclosure or protection device is the better choice
Choose a different enclosure or protection device when the installation needs more than a simple overhead fuse arrangement.
| Option | Better choice when | What to verify |
|---|---|---|
| Pole-mounted cut-out or service fuse carrier | The job is a simple service connection using the utility’s prescribed fuse arrangement | Utility-approved fuse type, carrier rating and service-conductor termination |
| Feeder pillar or distribution box | Equipment is at ground level and needs larger cable termination space, multiple outgoing circuits or a lockable enclosure | Cable-bending room, outgoing ways, gland plates and locking provision |
| Switch-fuse unit | You need visible isolation and switching | Switch-disconnector rating and IEC 60947-3, or the corresponding Indian adoption |
| MCB or MCCB enclosure | You need adjustable protection, repeated resetting, greater operational control or breaker-based coordination | Breaker settings, interrupting capacity and discrimination |
| Panelboard or motor-control assembly | The installation needs busbars, contactors, relays or automation | Busbar arrangement, control wiring, metering and automation interfaces |
An aerial fuse board is the wrong fit for an indoor panel room, a buried-cable network without an overhead mounting point, or a high-current feeder whose fault and switching duties exceed the board’s design. Do not use it where remote switching, alarms, metering or monitoring are required.
Compare the product drawing with the site. A genuine overhead-network board should show support mounting, weather protection, fuse access, and clearly arranged incoming and outgoing connections. If your search is fuse board distributor Pune, send that drawing with the enquiry so the proposed alternative is technically comparable.
How to compare Kasba Peth supplier quotes and the delivered price
Send every supplier the same RFQ: manufacturer and part number, number of ways, phases, neutral arrangement, rated amperes and volts, fuse-link size and rating, prospective-fault-current requirement, enclosure material, IP rating, dimensions, terminal sizes, mounting method and installation exposure.
Request a line-item bill of material containing:
- Fuse carriers, fuse-links and neutral links
- Gland plates, cable glands and lugs
- Mounting brackets and weatherproof covers
- Testing, warranty and replacement-part availability
Compare the commercial scope, not just the displayed amount.
| Quote line | Check what it includes | Why it changes the delivered price |
|---|---|---|
| Material | Board enclosure, carriers and fuse-links | An enclosure-only unit can look unusually cheap |
| Accessories | Terminations, neutral links, glands, lugs and brackets | Missing hardware becomes a later purchase |
| Logistics and work | Packing, freight, installation and testing | Ex-works pricing excludes movement to Kasba Peth |
| Tax | GST shown separately or included | A nominal Pune price is not the final payable amount |
Ask whether the price is ex-works or delivered to Kasba Peth. Deeva Electricals and Automation can be one local source when you are comparing an aerial fuse board dealer near Kasba Peth.
Before placing an order, compare the dimensional drawing, terminal schedule, certificates, delivery scope and after-sales replacement route. Confirm that cable-lug hole spacing, bending space and neutral-link capacity match your installation; two four-way boards can have very different prices when their current ratings and termination hardware differ.
Related product
 | Aerial Fuse Board The Larsen & Toubro (L&T) Aerial Fuse Board is a robust low-voltage distribution and protection unit designed for overhead power distribution... View product → |
Frequently asked questions
What should you specify before requesting an aerial fuse board quotation?
State whether you need a service cut-out, an overhead-distribution fuse board, or an enclosure with fuse carriers and terminals. Include the number of ways, fuse-link rating, conductor size, system voltage, mounting arrangement, cable-entry direction, and outdoor protection requirements.
How does an aerial fuse board fit onto an overhead pole or structure?
The board is fixed to a pole, channel, bracket, or other supporting structure with mounting hardware suited to its weight and dimensions. Confirm the bracket pattern, clearance for fuse replacement, cable-bending space, gland or terminal access, and weather protection before ordering.
How should you compare aerial fuse board specifications?
Compare the rated current, system voltage, fuse-link type, prospective fault current or short-circuit withstand, enclosure material, ingress protection rating, UV resistance, terminal capacity, and temperature range. Do not compare fuse amperage alone.
When is a different enclosure or protection device a better choice?
Choose a service cut-out for a defined incoming-service function, a terminal enclosure when you need segregation and connection space without the same fuse arrangement, or a circuit breaker or switch-fuse when resettable protection, switching, or coordinated protection is required.
How can you compare aerial fuse board prices in Kasba Peth?
Request an itemised quotation covering the board, fuse carriers, fuse links, terminals, mounting brackets, glands, taxes, delivery to your site, and installation. Compare the complete delivered specification, warranty terms, lead time, and replacement-part availability rather than the board price alone.
