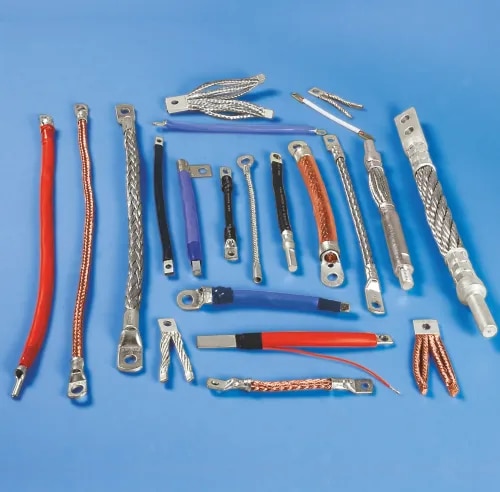

Braid Flexible Connectors from Deeva Electricals are manufactured using high-conductivity electrolytic copper braids to provide flexible, low-resistance electrical connections in power distribution systems. Designed to absorb vibration, thermal expansion, and equipment movement, these connectors ensure reliable current transfer while reducing mechanical stress on electrical components. Available in bare copper and tin-plated finishes, they are widely used in switchgear, transformers, busbars, control panels, generators, and earthing systems for long-lasting, maintenance-free performance. Specifications Parameter Details Product Name Braid Flexible Connector Material Electrolytic Grade Copper (99.9% Pure) Type Copper Braided Flexible Connector Surface Finish Bare Copper / Tin-Plated Copper Cross Section 10 sq.mm to 1000 sq.mm Current Rating Up to 5000 Amps (Depending on Size) Terminal Type Crimped or Welded Copper Lugs Length Customizable Operating Temperature -40°C to +105°C Applications Switchgear, Busbars, Transformers, Panels, Generators, Earthing Systems Features High Conductivity, Flexible, Corrosion Resistant, Low Maintenance

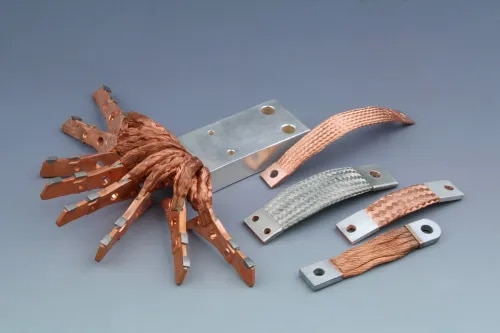

Copper Flexible Connectors from Deeva Electricals are manufactured using high-conductivity electrolytic-grade copper braids to provide reliable and flexible electrical connections in power distribution systems. These connectors are designed to absorb vibration, thermal expansion, and mechanical movement while maintaining excellent electrical conductivity. Their flexible braided construction minimizes stress on equipment terminals and busbars, ensuring long-term performance and enhanced system reliability. Our copper flexible connectors are available in bare copper, tin-plated copper, and insulated versions to suit a wide range of industrial and commercial applications. Precision-crimped or welded copper terminals ensure low contact resistance, superior current-carrying capacity, and secure connections. These connectors are ideal for use in switchgear panels, transformers, generators, bus duct systems, UPS systems, battery banks, earthing systems, renewable energy installations, and railway electrical systems. At Deeva Electricals, we manufacture custom copper flexible connectors in various lengths, cross-sections, and terminal configurations to meet specific customer requirements while complying with national and international quality standards. Specifications Parameter Details Product Name Copper Flexible Connector Material Electrolytic Grade Copper (99.9% Pure) Type Braided Copper Connector / Flexible Busbar / Earth Connector Surface Finish Bare Copper or Tin-Plated Copper Insulation PVC, Heat Shrink, Silicone (Optional) Cross Section 10 sq.mm to 1000 sq.mm Length Customizable Terminal Type Crimped, Pressed, Welded Copper Lugs Current Rating Up to 5000 Amps (Depending on Size) Operating Temperature -40°C to +105°C Standards IEC, IS, RoHS Compliant
