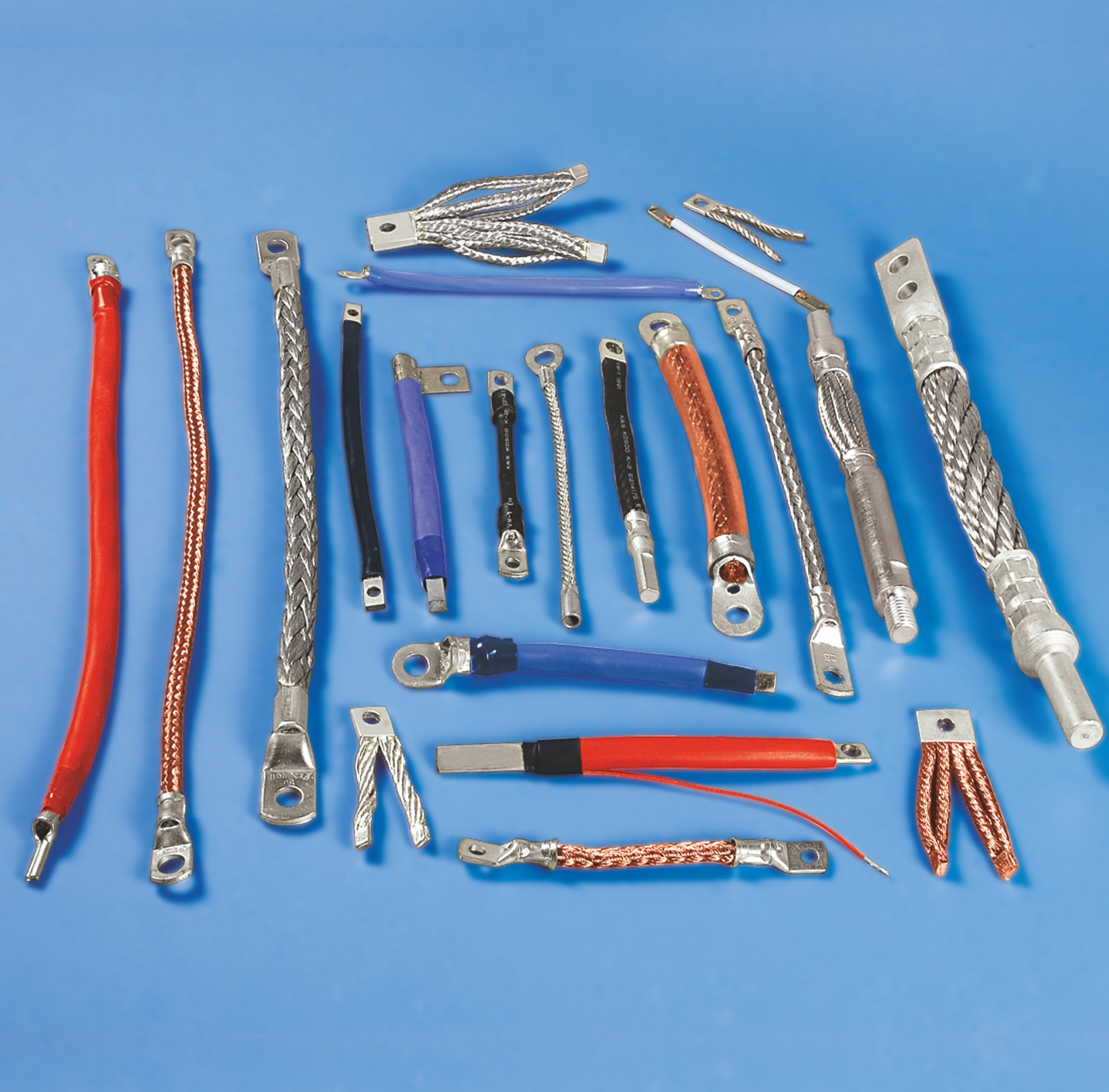

Copper Flexible Connectors

Copper Flexible Connectors from Deeva Electricals are manufactured using high-conductivity electrolytic-grade copper braids to provide reliable and flexible electrical connections in power distribution systems. These connectors are designed to absorb vibration, thermal expansion, and mechanical movement while maintaining excellent electrical conductivity. Their flexible braided construction minimizes stress on equipment terminals and busbars, ensuring long-term performance and enhanced system reliability.

Our copper flexible connectors are available in bare copper, tin-plated copper, and insulated versions to suit a wide range of industrial and commercial applications. Precision-crimped or welded copper terminals ensure low contact resistance, superior current-carrying capacity, and secure connections. These connectors are ideal for use in switchgear panels, transformers, generators, bus duct systems, UPS systems, battery banks, earthing systems, renewable energy installations, and railway electrical systems.

At Deeva Electricals, we manufacture custom copper flexible connectors in various lengths, cross-sections, and terminal configurations to meet specific customer requirements while complying with national and international quality standards.

Specifications

Parameter Details

Product Name Copper Flexible Connector

Material Electrolytic Grade Copper (99.9% Pure)

Type Braided Copper Connector / Flexible Busbar / Earth Connector

Surface Finish Bare Copper or Tin-Plated Copper

Insulation PVC, Heat Shrink, Silicone (Optional)

Cross Section 10 sq.mm to 1000 sq.mm

Length Customizable

Terminal Type Crimped, Pressed, Welded Copper Lugs

Current Rating Up to 5000 Amps (Depending on Size)

Operating Temperature -40°C to +105°C

Standards IEC, IS, RoHS Compliant
