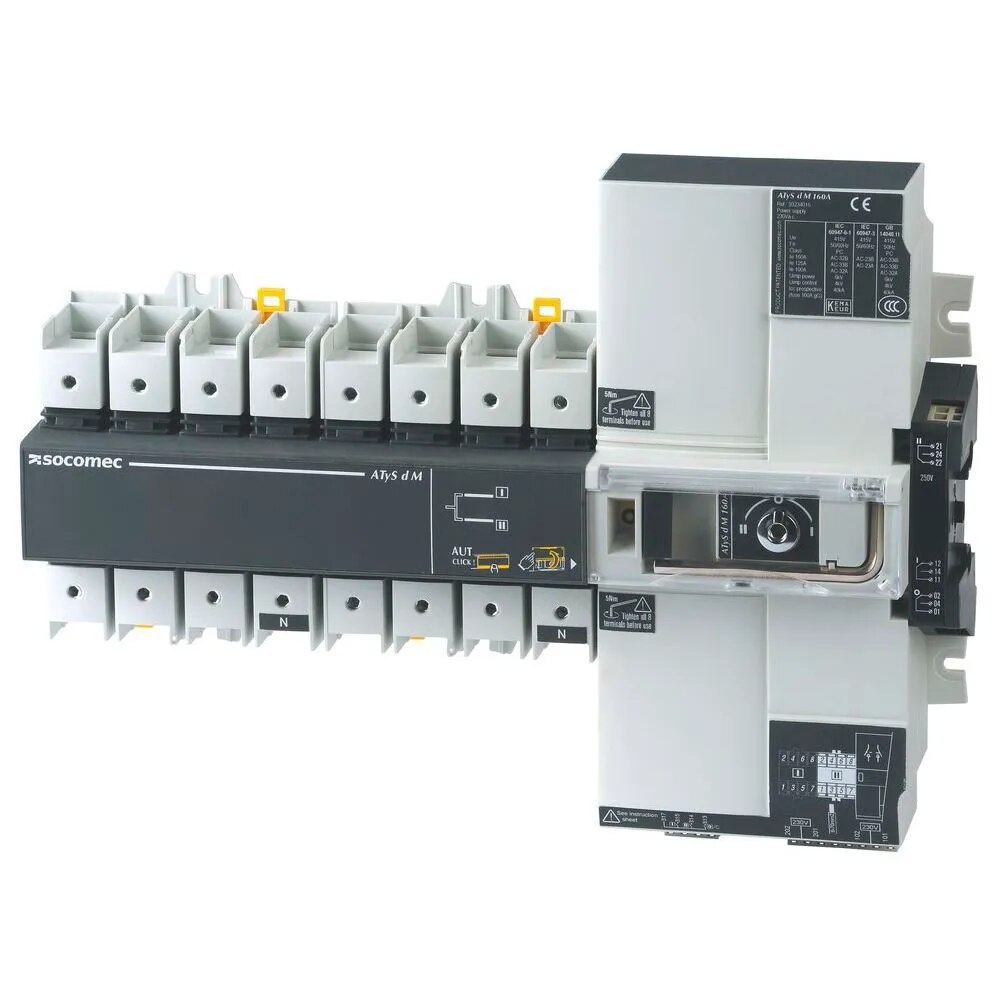

Socomec ATyS Automatic Transfer Switch

The Socomec ATyS Automatic Transfer Switch (ATS) is a premium motorized changeover switch designed to provide safe, fast, and uninterrupted transfer between two power sources, such as the utility mains and a standby generator. Engineered with advanced switching technology, the ATyS series automatically monitors the availability of the power supply and transfers the electrical load without interruption, ensuring continuous operation of critical equipment. Its compact modular design, high switching performance, and reliable mechanical interlocking make it suitable for industrial, commercial, healthcare, data centres, telecom, and infrastructure applications. The Socomec ATyS ATS offers exceptional operational safety, easy installation, long service life, and compliance with international quality standards, making it an ideal solution for mission-critical power management systems.

Specifications

Specification Details

Brand Socomec

Product Name ATyS Automatic Transfer Switch

Type Motorized Automatic Transfer Switch (ATS)

Series ATyS dM

Pole Configuration 3 Pole / 4 Pole

Rated Current 40A to 3200A (Model Dependent)

Rated Voltage 230V / 415V AC

Frequency 50/60 Hz

Operation Automatic & Manual Override

Controller Built-in Intelligent Controller

Mounting Type Panel Mounted

Electrical Life High Endurance Switching

Mechanical Interlocking Yes

Protection Phase Failure, Voltage Monitoring & Safe Load Transfer

Standards IEC 60947-6-1

Applications Generator Changeover, Industrial Plants, Hospitals, Data Centres, Commercial Buildings, Hotels, IT Parks, Power Distribution Systems
